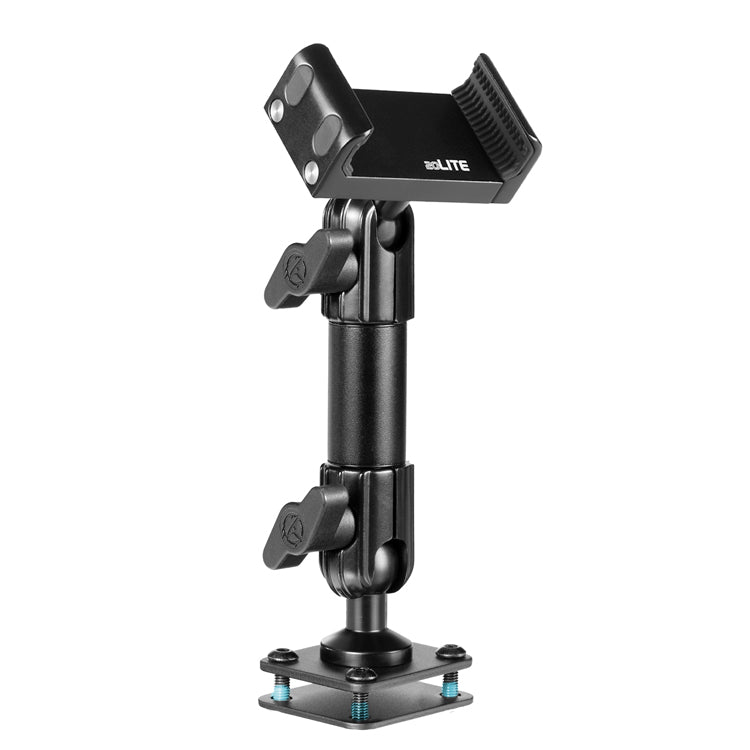

AM12-20L-BK - AMPS Drill Base 20LITE Phone Mount | 4.75" Aluminum arm
Mounting a phone to your dashboard has never been so easy.

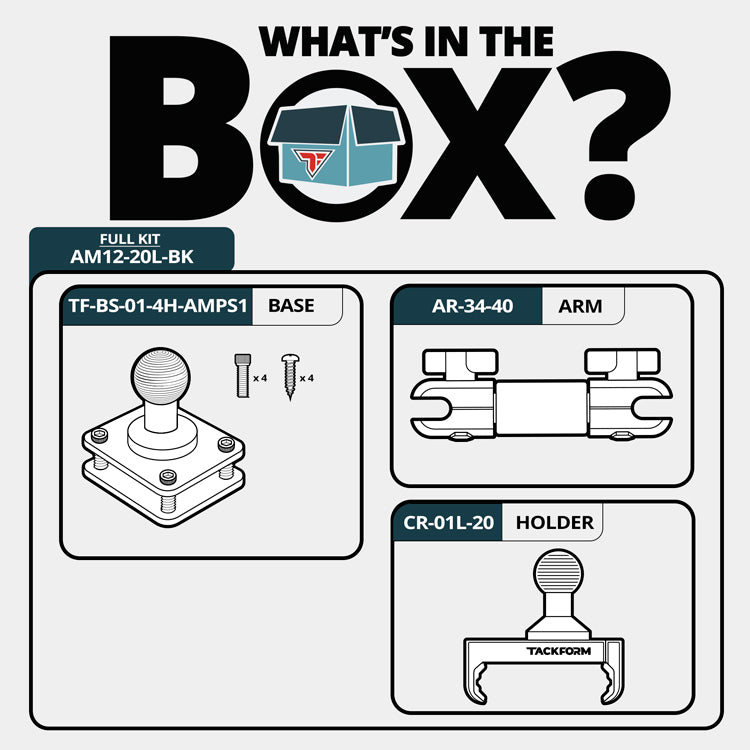

The AM12-20L-BK mounting kit comes with all necessary hardware to get your device mounted securely to you dashboard. This kit is broken down into three parts, the mounting base, the arm, and the phone holder.
The Base -

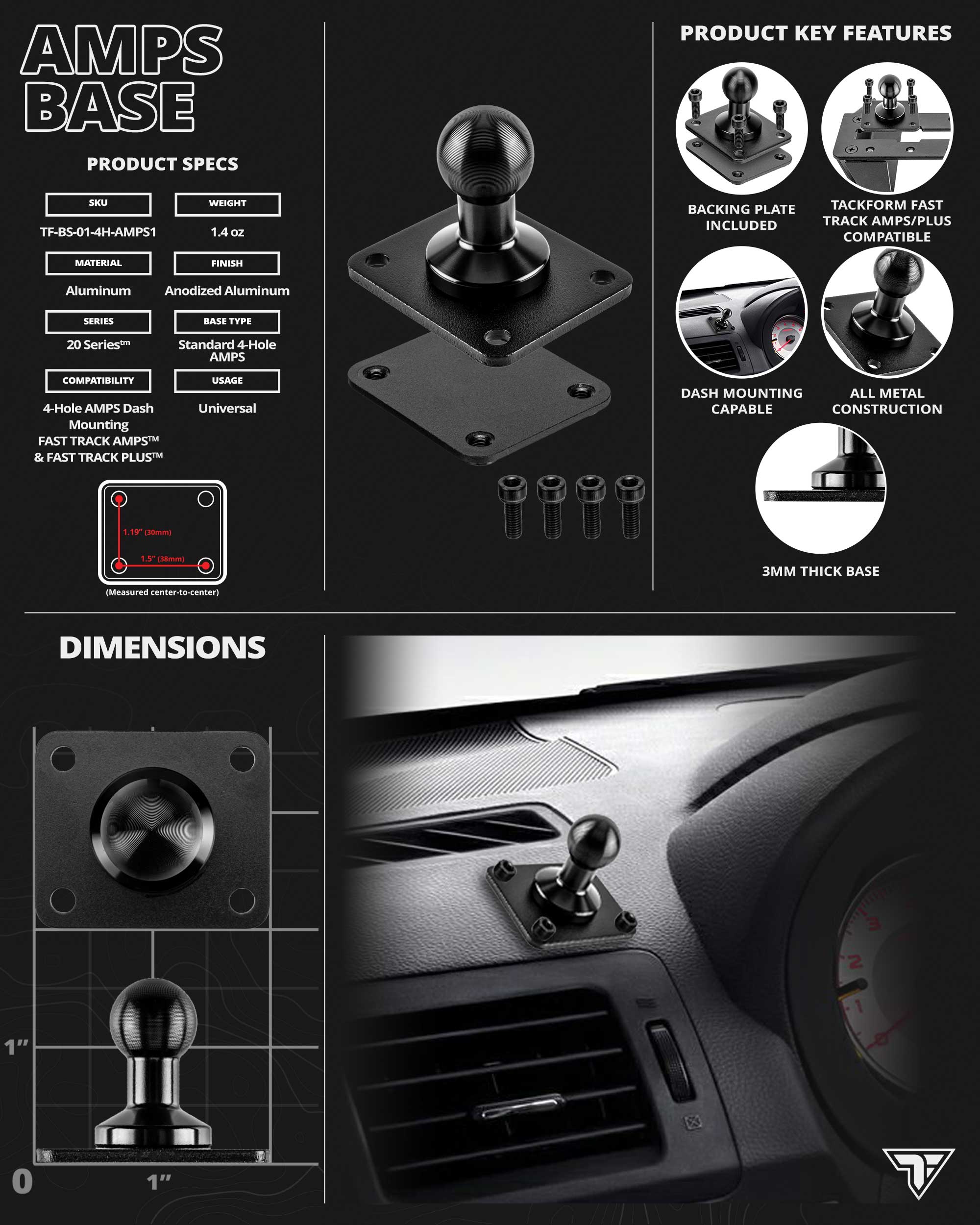

- TF-BS–4H-KIT - AMPS Mounting Base with Install Kit -
This component features a 20mm Aluminum ball securely attached to a robust aluminum AMPS Plate using 3 flat head screws. Unlike rubber ball alternatives that wear out over time, this sturdy metal combination guarantees long-lasting durability. The AMPS hole pattern is 38mm x 30mm from center to center, and the plate's dimensions are 1.7" x 2" x 0.1185". This kit is also paired with a dashboard mounting kit. This kit is essential for dashboard device mounting. Firstly, its oversized backing plate ensures optimal weight distribution, reducing visible vibration on your device. Secondly, installation is streamlined: the mounting plate features press-fit threaded inserts, eliminating the need to wrestle with nuts and wrenches in confined spaces behind the dash. Moreover, should a screw ever come loose, it can be easily tightened without the hassle of accessing the underside of the dashboard.
The Arm -

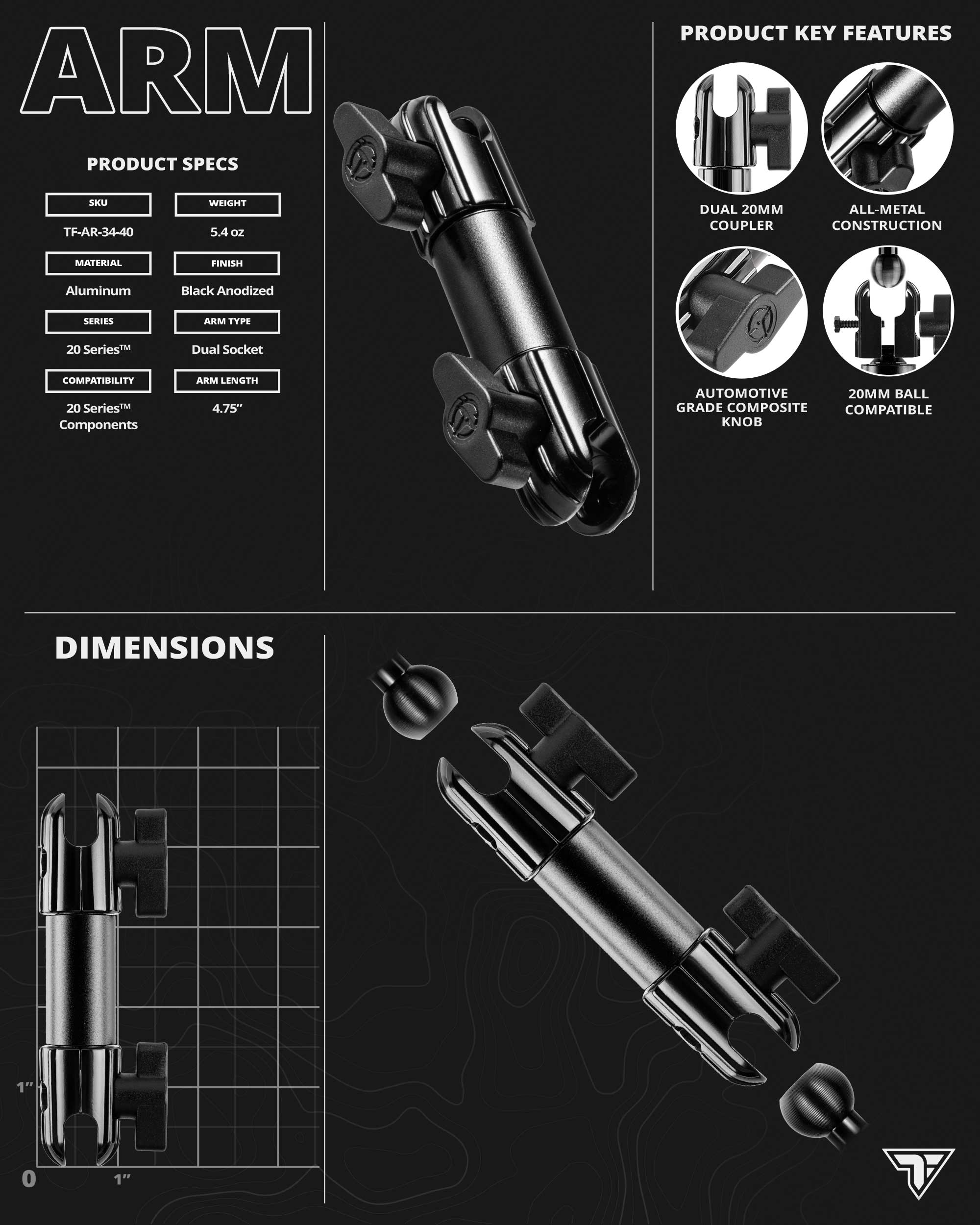

- TF-AR-34-40 - 4.75” Long Aluminum Tube Double Socket Arm -
This 4.75-inch long tube arm is part of the 20 Series and is specifically designed to work with metal 20mm balls. A standout feature is its low-profile design, complemented by sockets that articulate independently on each end. This allows for an extensive range of motion, ensuring you can position your device just right. With a metal ball and socket connection, you can secure the position with just a half-turn of a knob. The distance between the centers of the two balls is approximately 4.25”
The Holder -

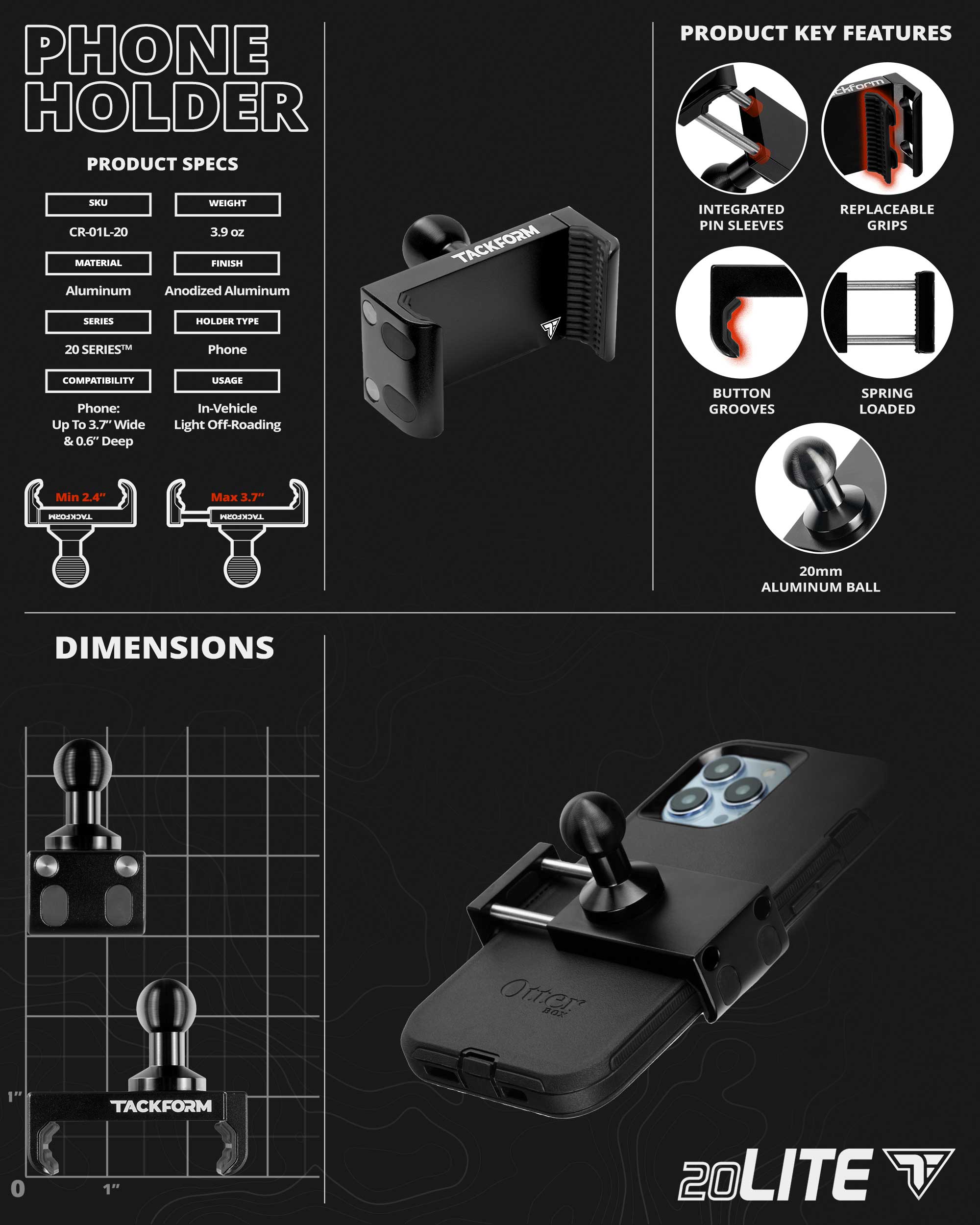

- CR-01L-20 - Enduro 20LITE Spring Cradle -
The 20 Lite Spring cradle is an indestructible cradle for in vehicle, semi truck, fleet and flight use. The spring tension is dialed in for easy single handed insertion and removal of the phone but built to handle the nastiest of roads and gaping potholes. It holds devices up to 3.7” wide and up to .6” deep.
