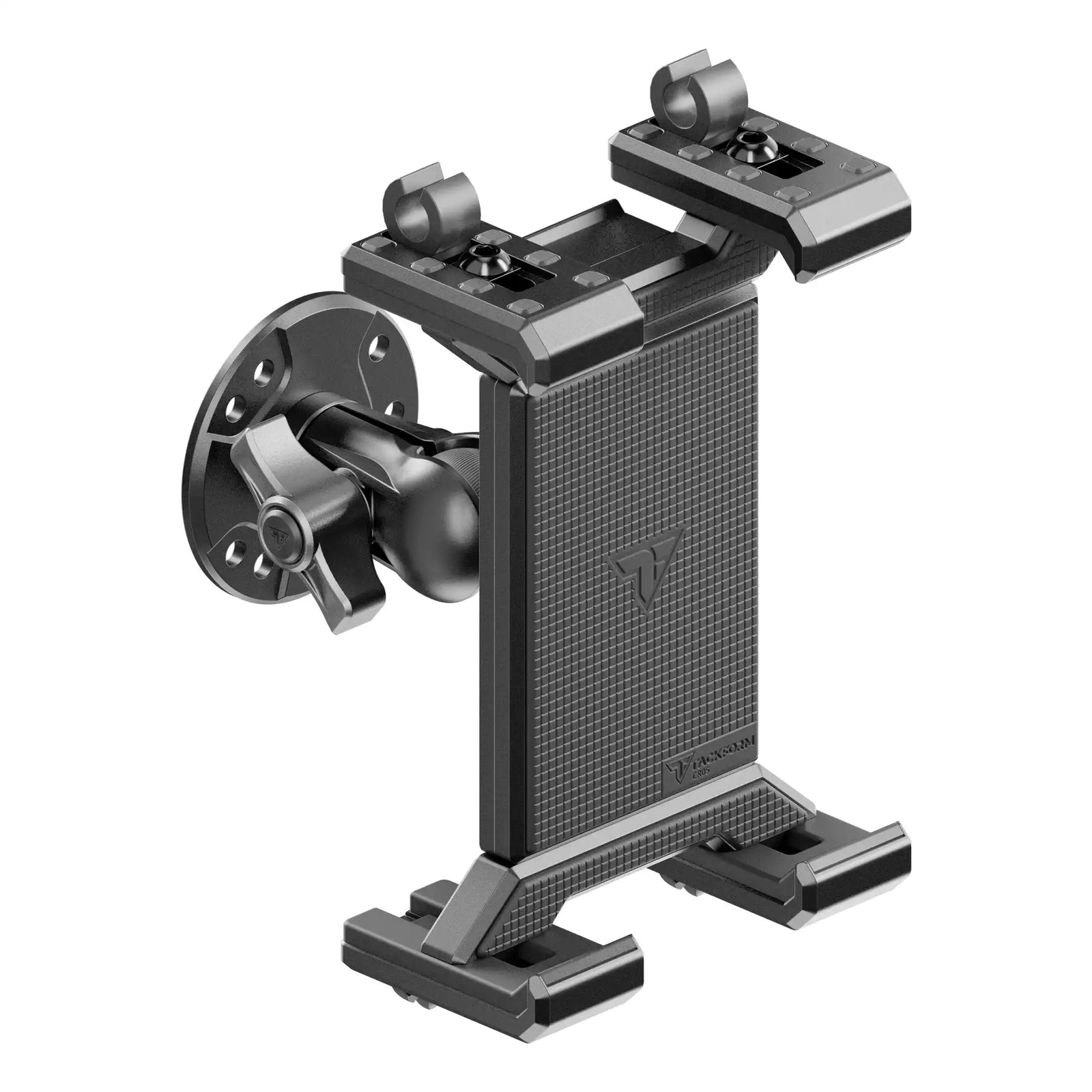

HEAVY DUTY COMMERCIAL DRILL BASE MOUNT WITH SLATE™ TABLET HOLDER
ROUND AMPS CONNECTION | CHOOSE YOUR ARM LENGTH
- Designed For Heavy Duty Commercial Applications
- Supports A Wide Variety Of Tablets and Cases
- Choose Your Arm Length/Type
- Round AMPS Drill Base Connection W/ Install Kit
- Tackform 26 Series (Metal 26mm Ball & Socket System)
- Lifetime Warranty
DESIGNED FOR HEAVY DUTY COMMERCIAL APPLICATIONS

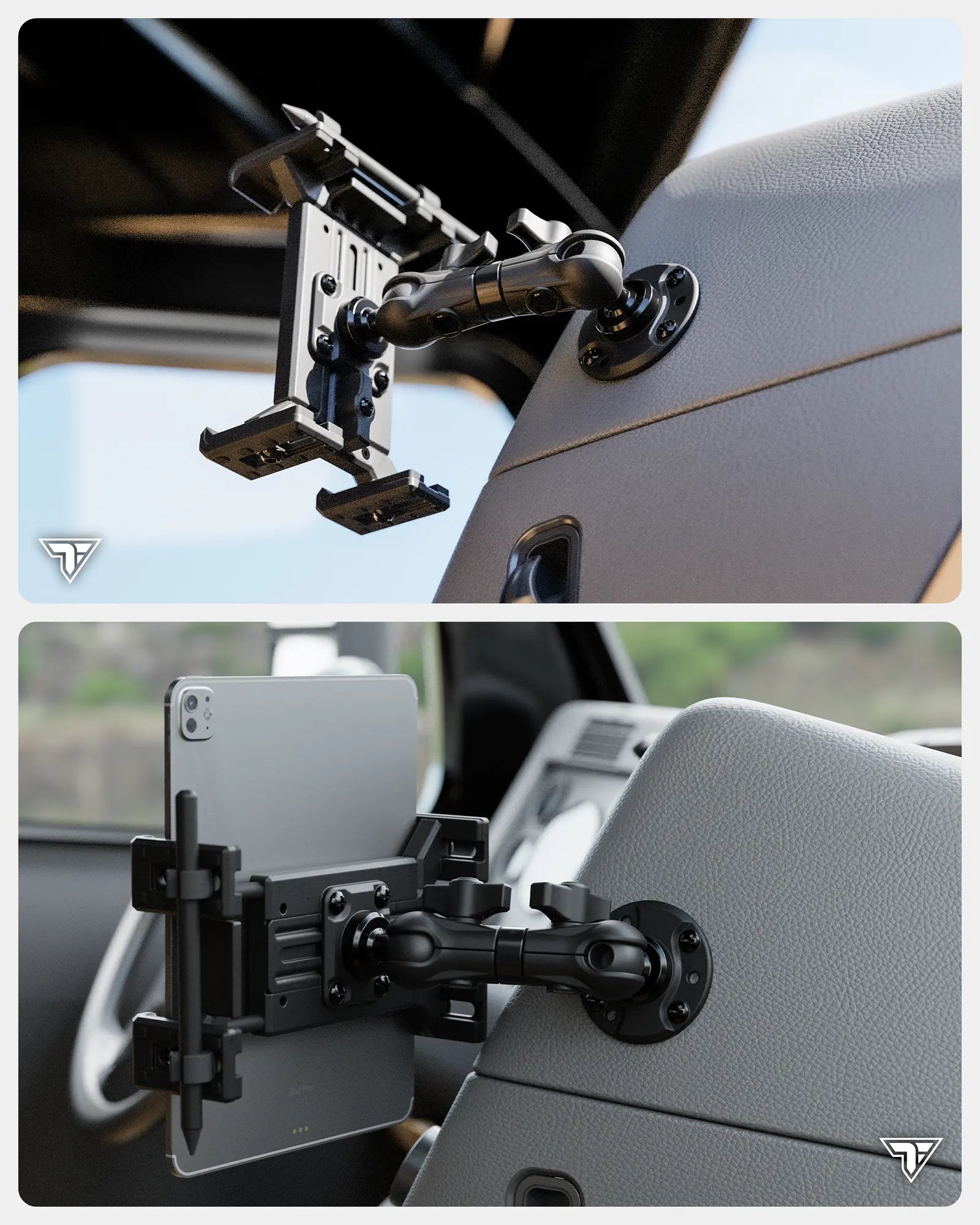

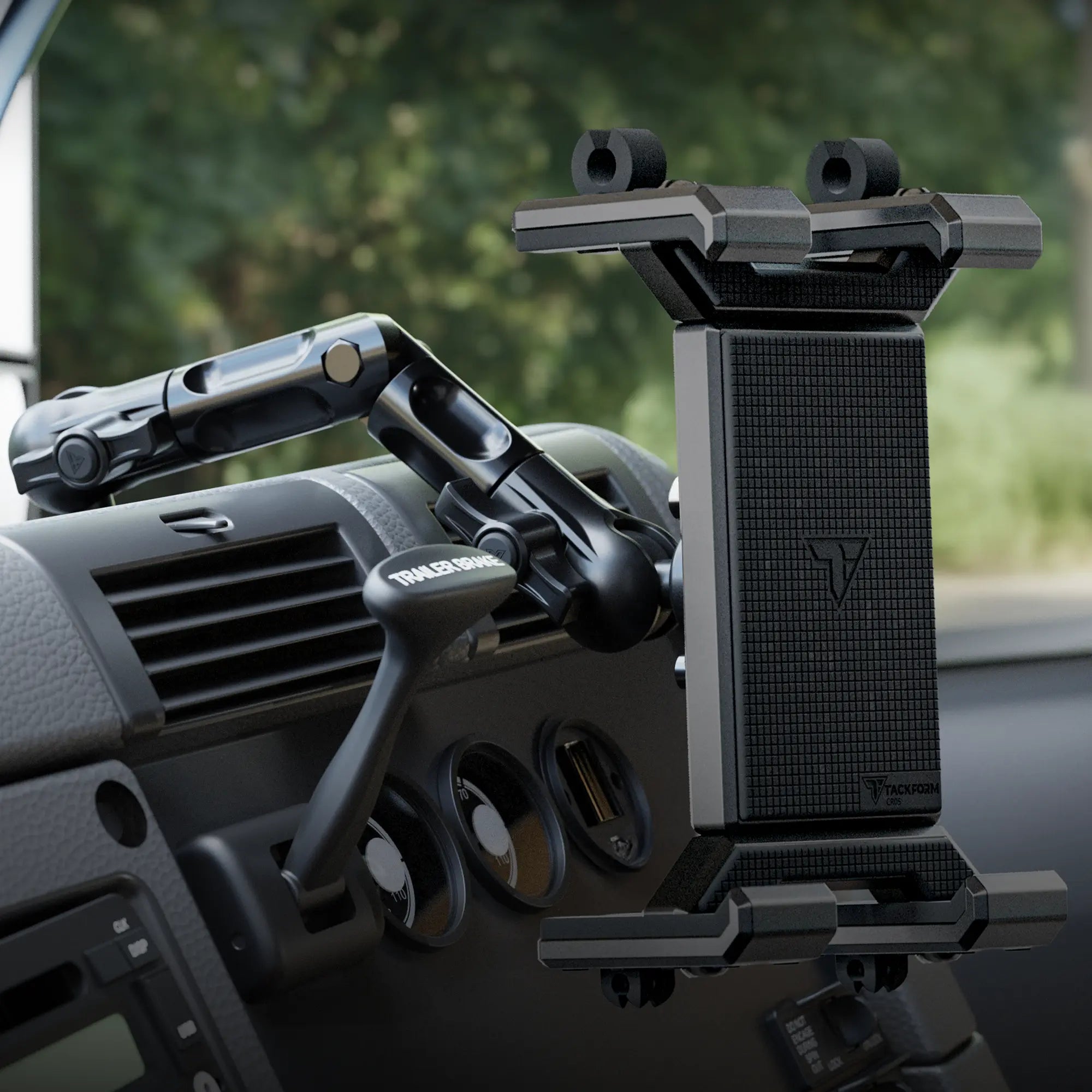

Engineered for the toughest environments, our heavy duty drill base SLATE™ tablet mount is built to perform in high vibration, high impact industries such as Law Enforcement, Emergency Medical Services, Waste Management, Agriculture, Powersports (SXS, UTV, ATV), and more. Featuring our rugged 26 Series ALL-METAL ball and socket system, it offers increased load capacity, reduced vibrations, and a full range of motion with easy and secure repositioning. Designed to deliver a lifetime of ROCK-SOLID performance, the drill base tablet mount is designed to withstand extreme temperatures, humidity, and constant exposure to harsh conditions, making it the trusted choice for demanding commercial use.
SUPPORTS A WIDE VARIETY OF TABLETS AND CASES
Designed to support a wide range of tablets, this versatile holder is compatible with Samsung Galaxy, iPad, and other devices with screen sizes from 6” to 16” (measured diagonally). The spring loaded cradle expands from 5.25” to 10.25” in height, with the option to mount larger tablets horizontally and rotate for a diagonal view. Fully adjustable grips accommodate devices from 0.18” to 1.5” in depth, including those with slim, rugged, or hand strap-equipped cases, while soft rubber padding ensures a secure, scratch free hold. The heavy duty internal spring mechanism delivers strong, consistent tension for stable support in both portrait and landscape orientations, with quick, single handed insertion and removal. For added functionality, the holder includes an adjustable support leg for customized positioning, integrated rubber cable management channels to reduce clutter, and a built in stylus holder for easy access. (Not compatible with the Galaxy View.)
CHOOSE YOUR ARM LENGTH/TYPE
Short Reach
- 4.25” Overall Length
- 3.25” Ball-Center To Ball-Center
5.25" Modular
- 5.25” Overall Length
- 4.25” Ball-Center To Ball-Center
7.75” Modular
- 7.75” Overall Length
- 6.75” Ball-Center To Ball-Center
ROUND AMPS DRILL BASE CONNECTION W/ INSTALL KIT

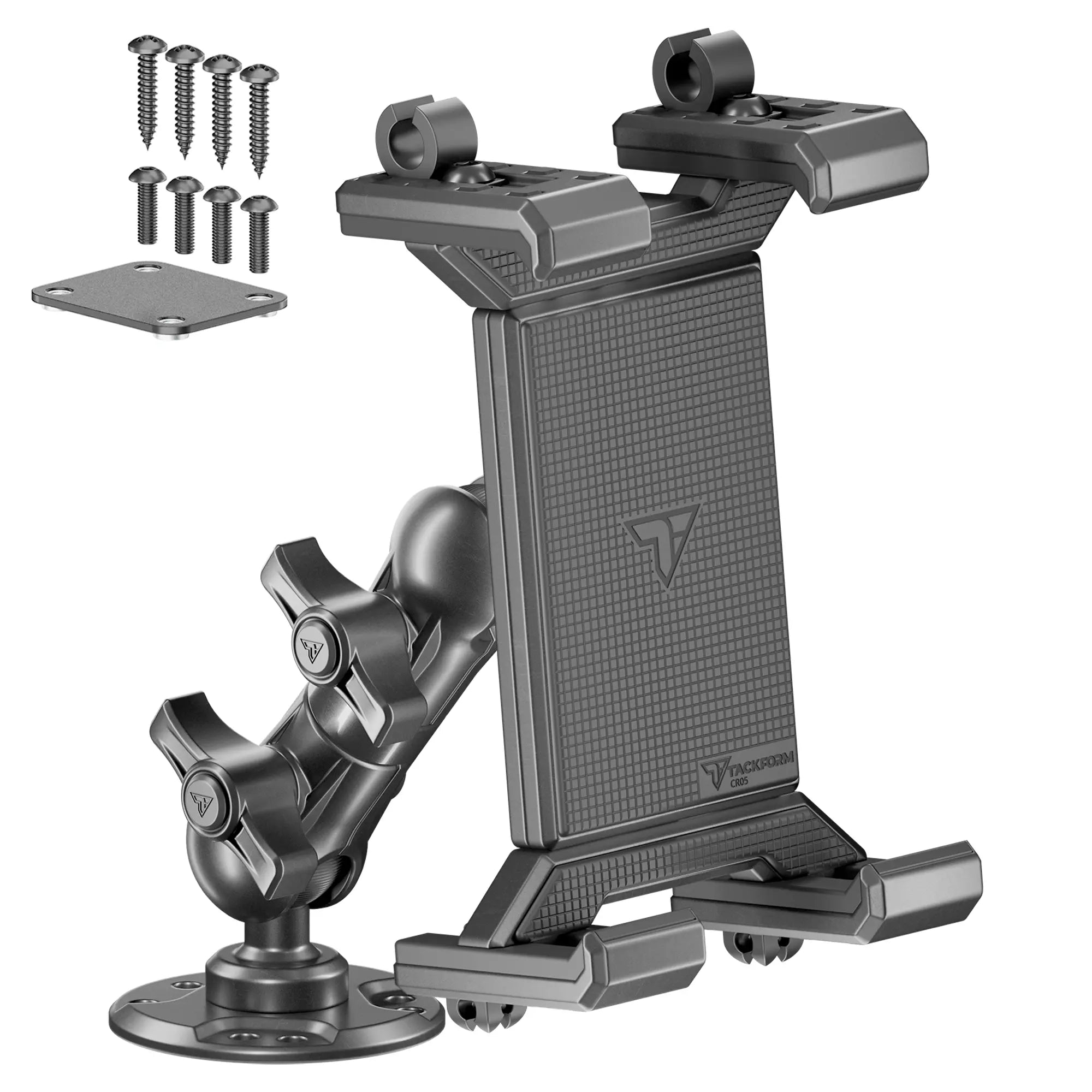

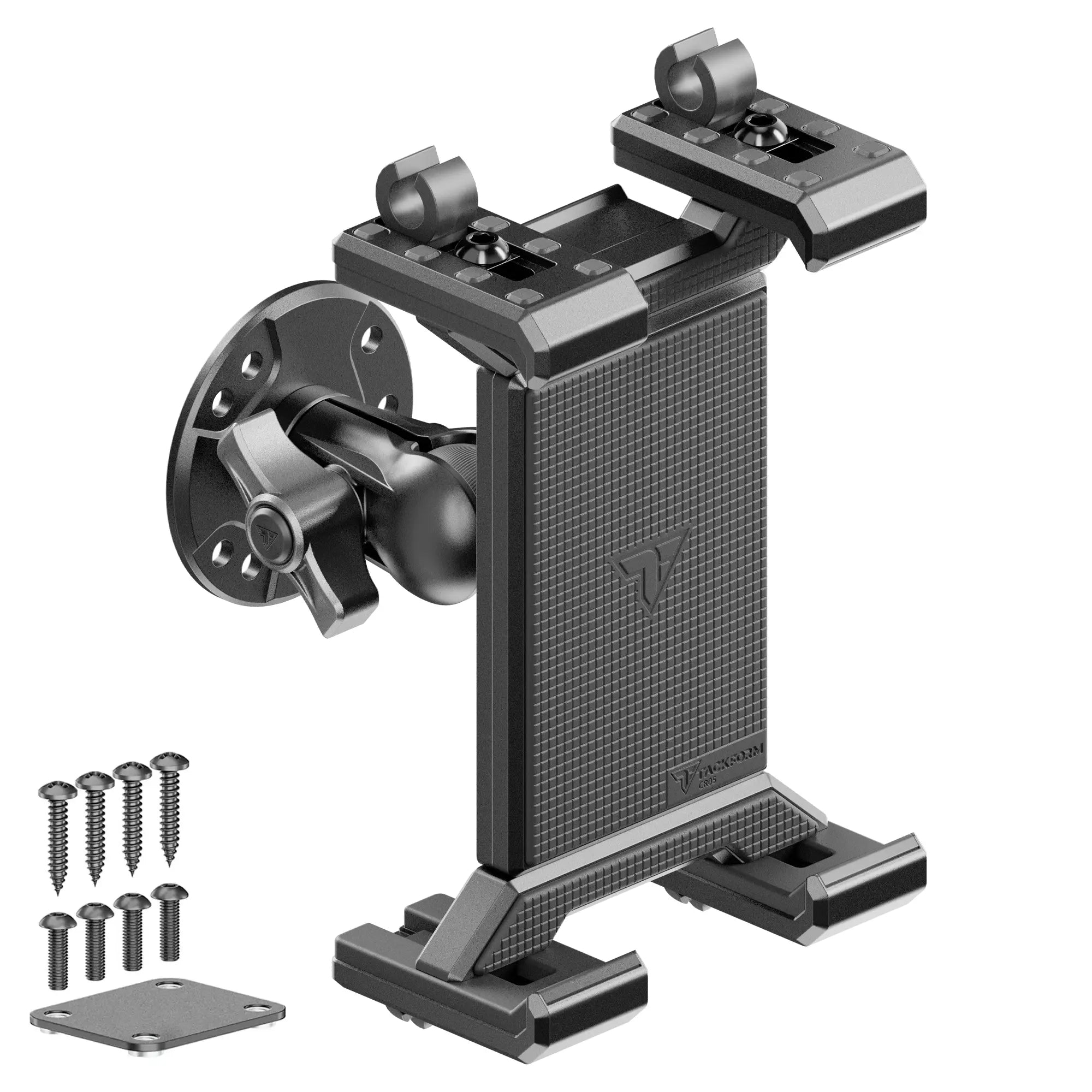

The 6061-T6 aluminum round AMPS base features the industry-standard 30mm x 38mm (1.181" x 1.496") hole pattern and supports both drill and bolt mounting options for flexible installation. Unlike thinner competitor plates, our AMPS mount is built with a plate that is twice as thick and reinforced with heavy duty hardware at the ball connection point, delivering reliable strength under demanding loads. Each kit includes a metal backing plate with integrated nuts, four self-tapping screws, and four machine screws. The backing plate install option is hands down the best choice if you're paying an installer to outfit a fleet. When you factor in installation time, these backing plates are worth their weight in gold.
TACKFORM 26 SERIES
Specifically designed for compatibility with Tackform’s 26 Series Platform, revolving around the ALL-METAL 26mm ball and socket system. Our parts stand out for their tested durability and engineered load capacities, featuring a safety factor not guaranteed by other manufacturers. Please Note: Not compatible with 1”/B-Sized/25.4mm balls systems.
LIFETIME WARRANTY
We believe that quality products should last a lifetime. In a world filled with low cost, short lived, quick fix mounting solutions, we choose to stand apart by manufacturing products built to endure the toughest conditions. Our metal products are backed by a lifetime warranty, reflecting our confidence in their durability. We believe that exceptional products deserve exceptional support. From product guidance to technical support, we’re dedicated to delivering the best customer experience in the industry.
