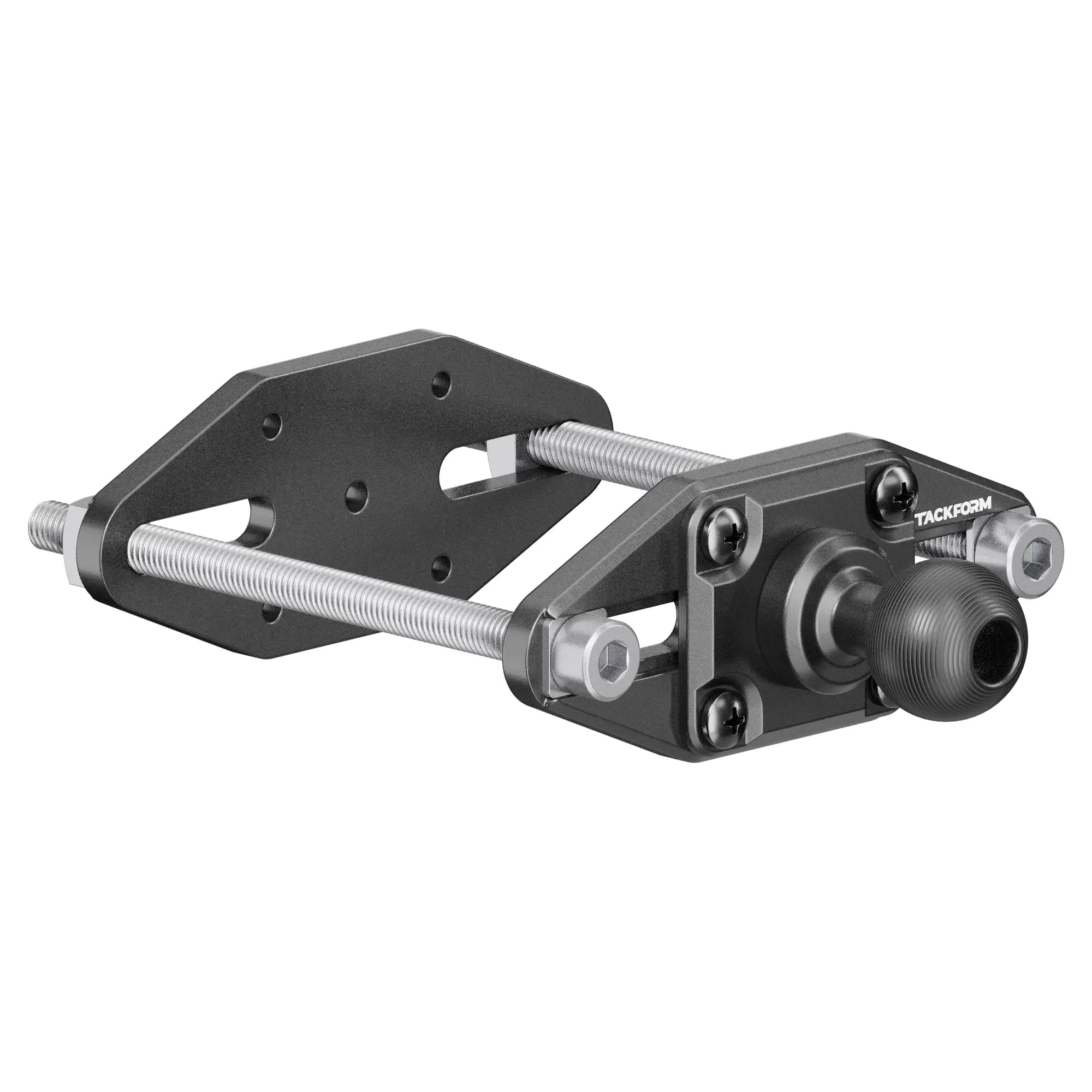

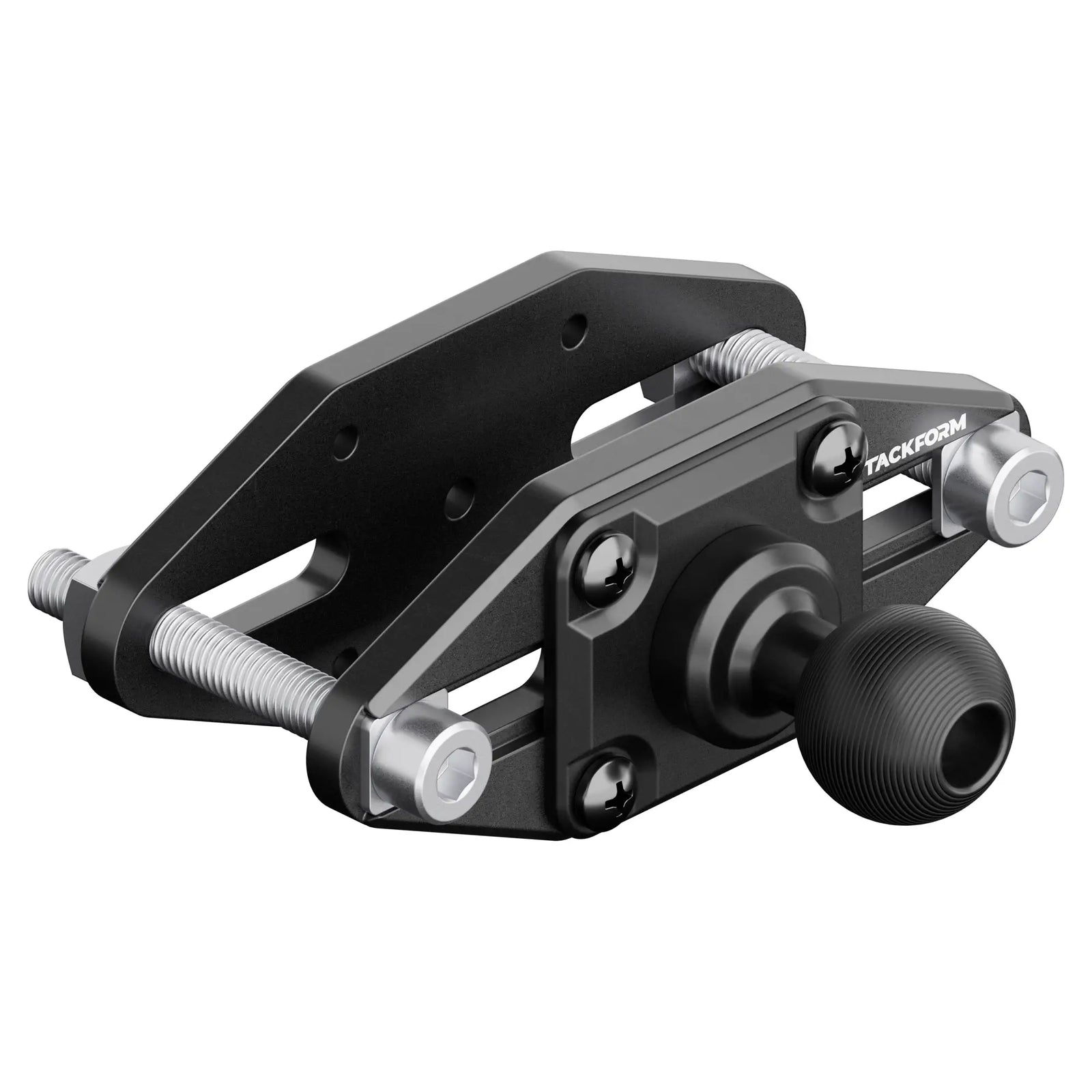

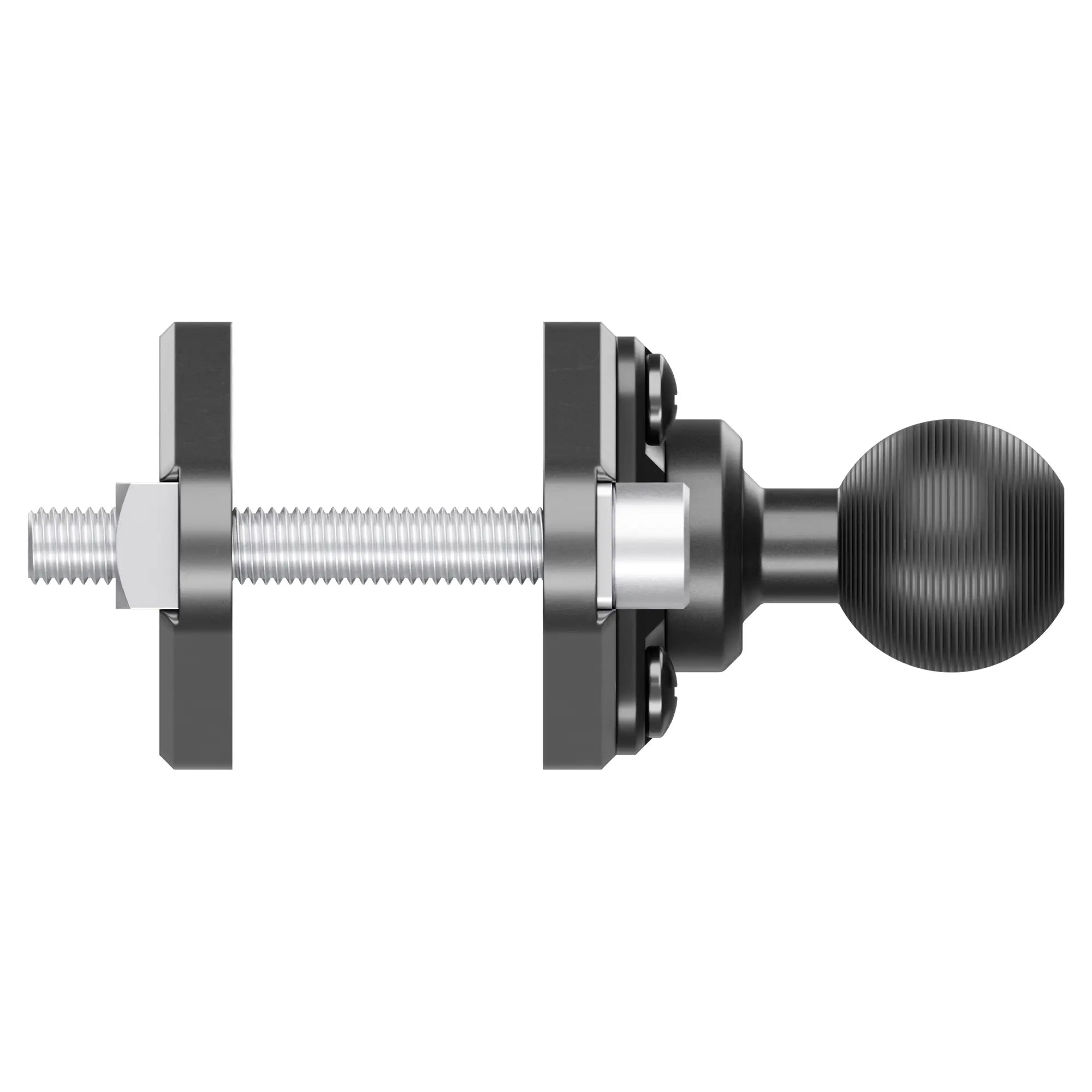

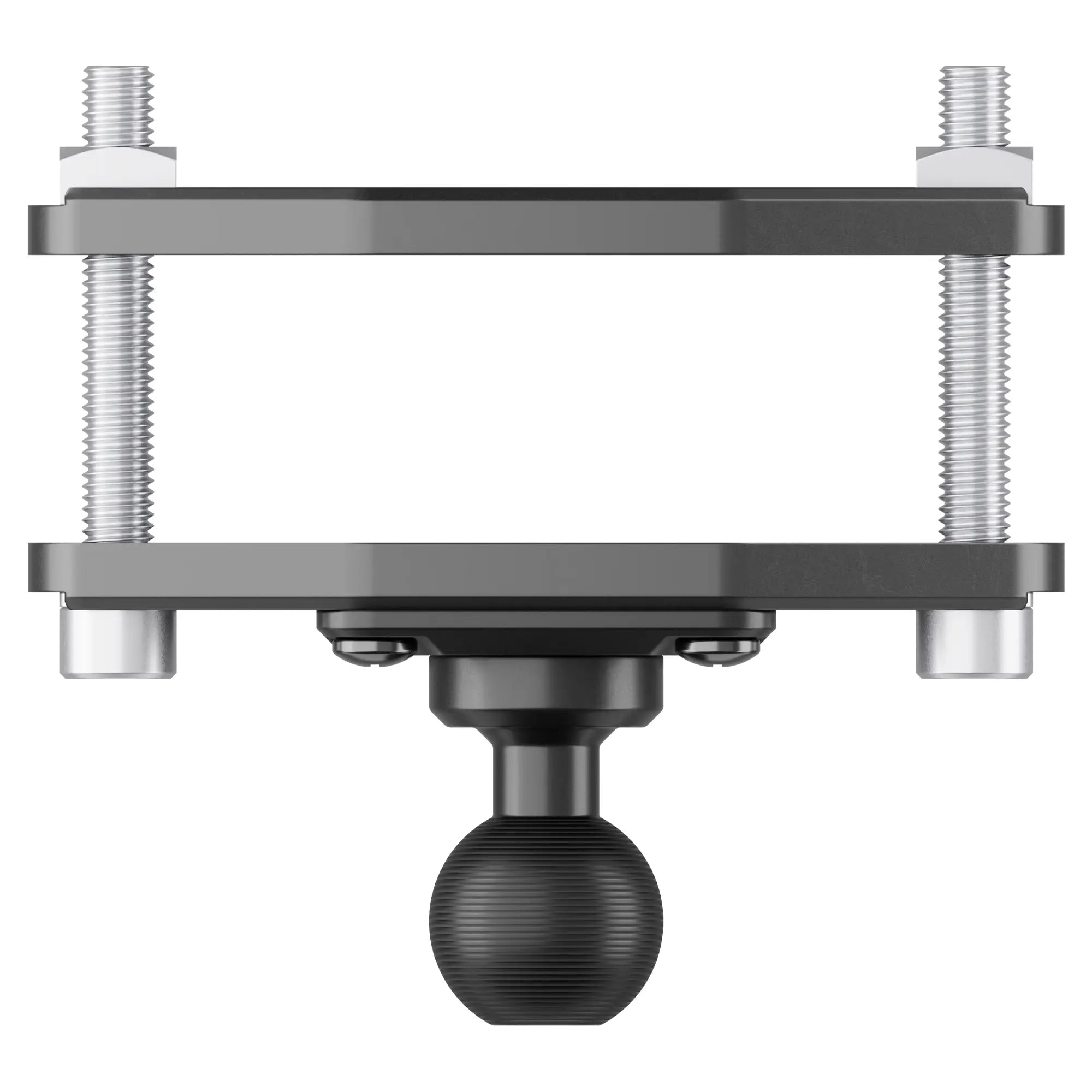

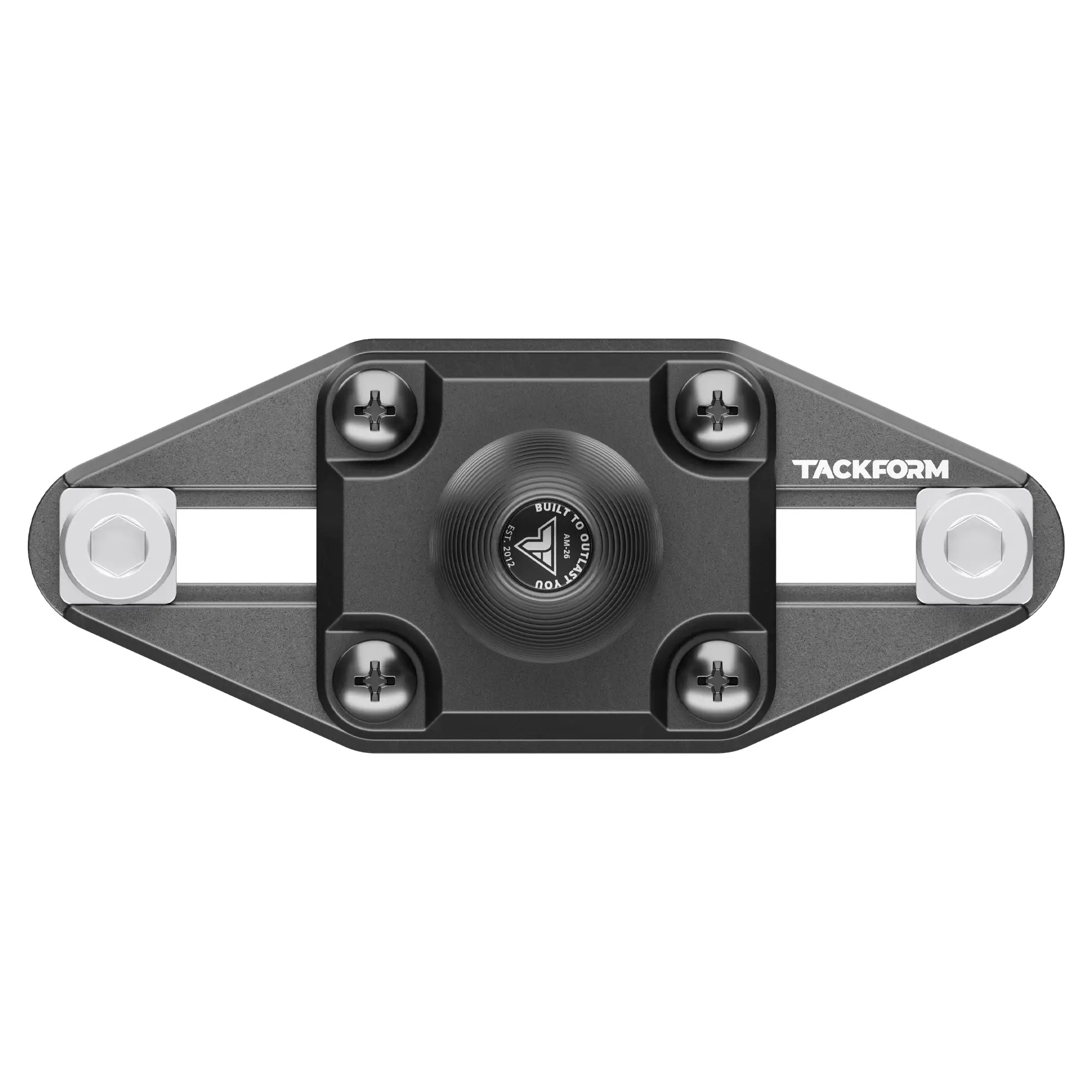

UNIVERSAL FORKLIFT MOUNTING KIT W/26MM BALL
Our Forklift Mounting Kit is designed to fit a wide range of applications and configurations, including forklift pillars/guards with a maximum width of 3.4 inches, and a depth range between 1.6 inches and 4 inches. It supports AMPS connections using the industry-standard hole pattern of 30 millimeters by 38 millimeters (1.181 inches by 1.496 inches). The kit includes our heavy-duty AMPS mount with a 26mm metal ball. Unlike thinner alternatives, our AMPS plate is twice as thick as some competitors’ and reinforced with robust hardware, delivering superior strength and durability under heavy loads.
EASY INSTALL - NO WRENCH REQUIRED

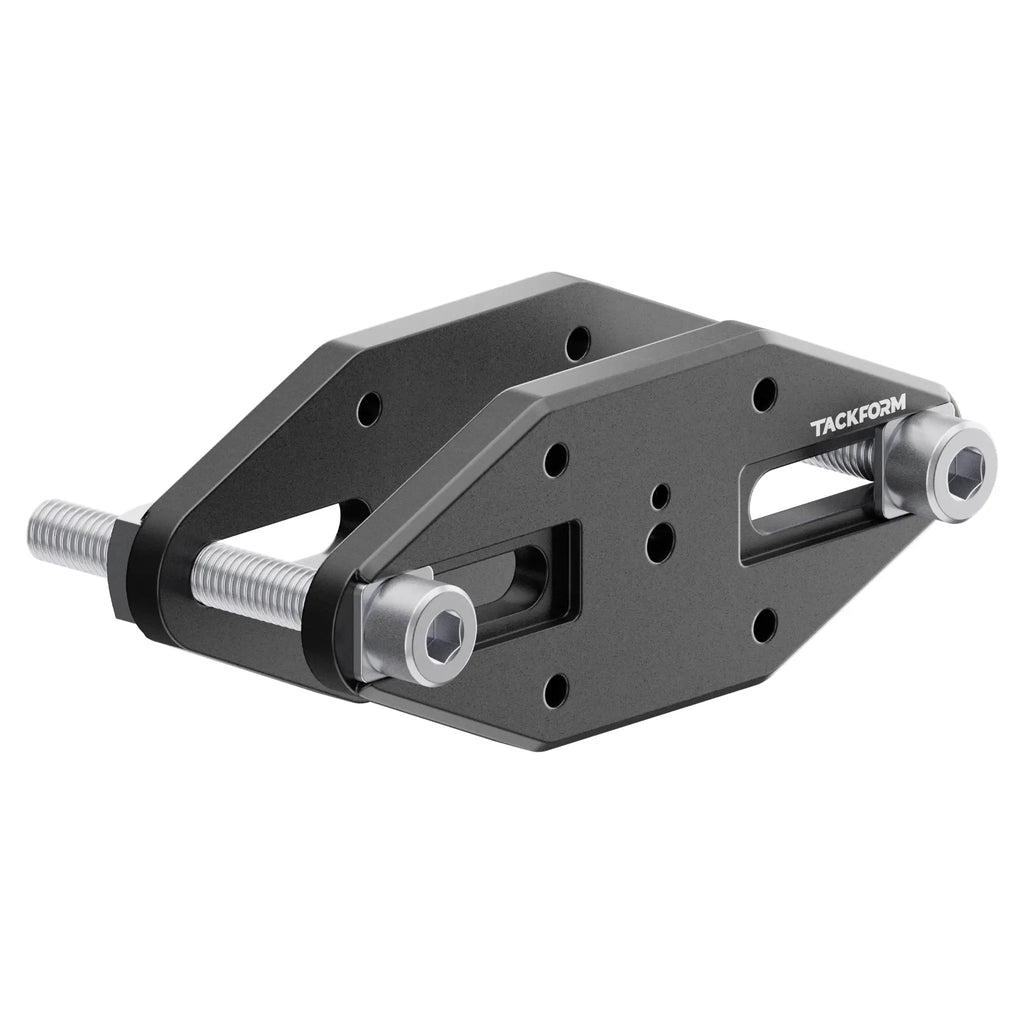

Engineered with an integrated slot, the mounting plate accepts a square nut that prevents rotation during installation. This innovation eliminates the need for a wrench, meaning the supplied Allen Key is the only tool needed to tighten the bolts, making installation and removal fast and efficient. Additionally, the slotted bolt holes provide flexible positioning, allowing the mount to be adjusted and installed in a variety of locations to suit different forklift setups.

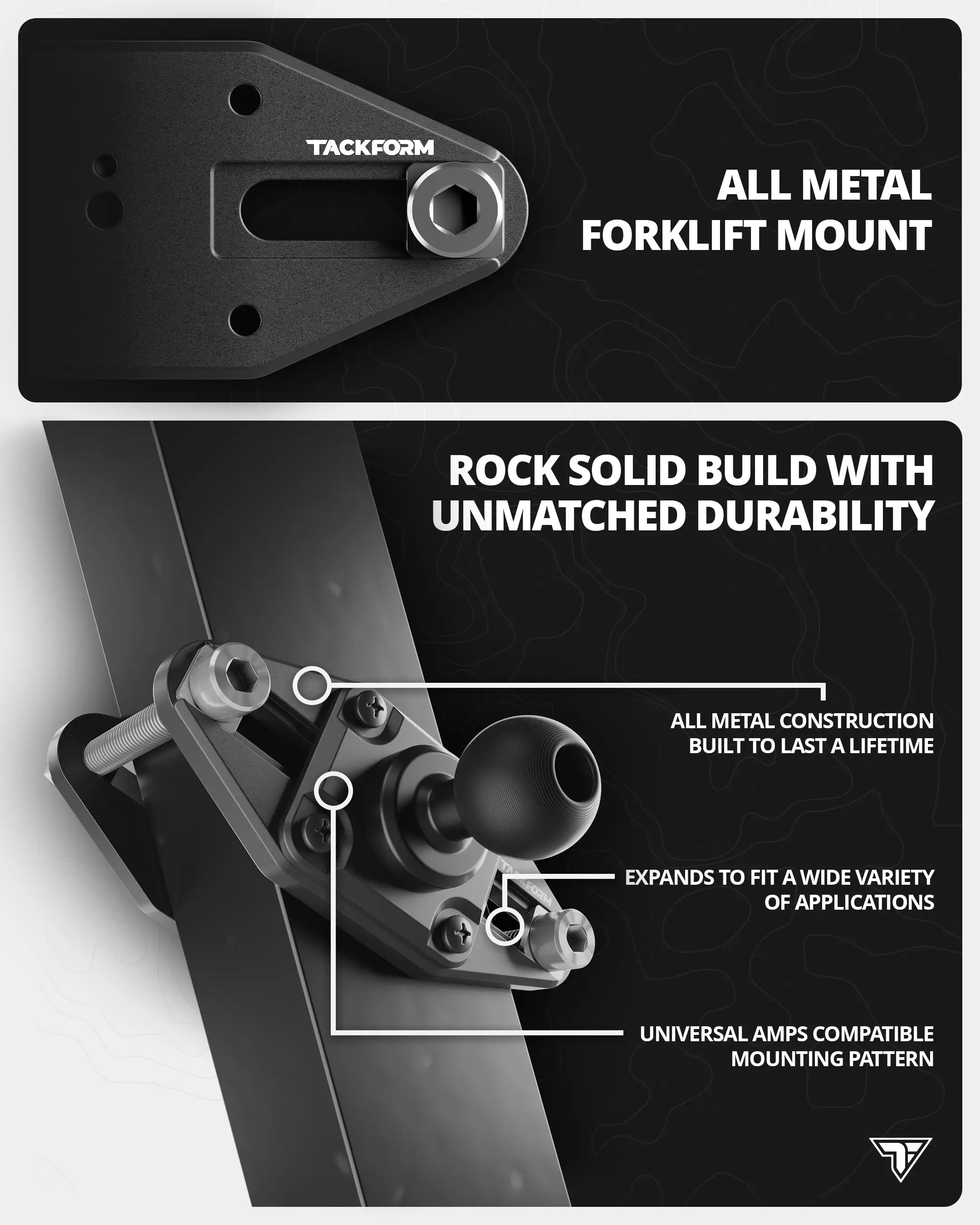

ALL-METAL CONSTRUCTION
Built from high-strength anodized 6061-T6 billet aluminum and supplied with stainless steel hardware. This high-performance combination offers exceptional strength, corrosion resistance, and resilience. The result is a mount tough enough to withstand the rigorous demands of the job.
TACKFORM 26 SERIES
Specifically designed for compatibility with Tackform’s 26 Series Platform, revolving around the ALL-METAL 26mm ball and socket system. Our parts stand out for their tested durability and engineered load capacities, featuring a safety factor not guaranteed by other manufacturers. Please Note: The 26mm metal ball is backwards compatible with other industry standard 1", 25.4mm, B-Sized parts.
