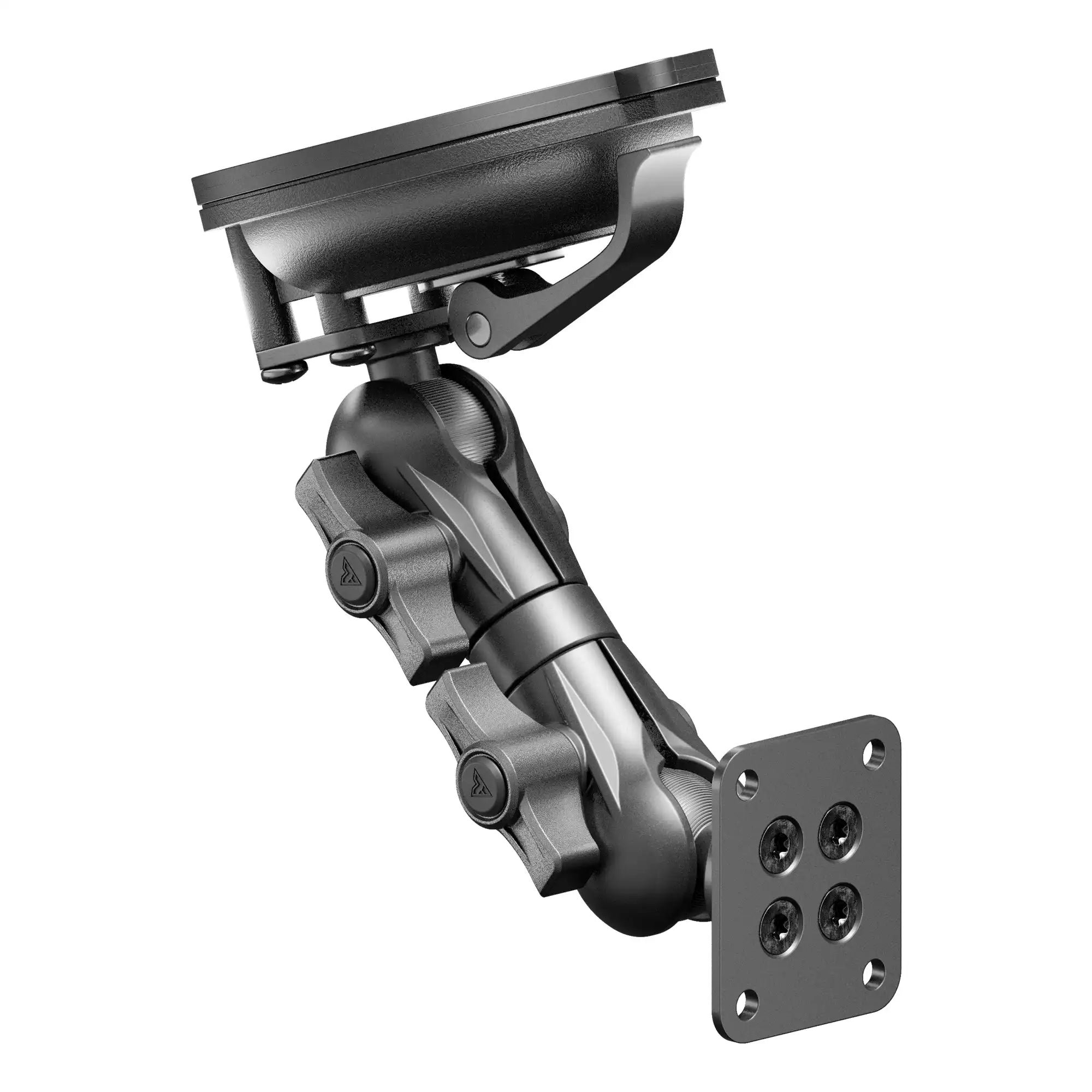

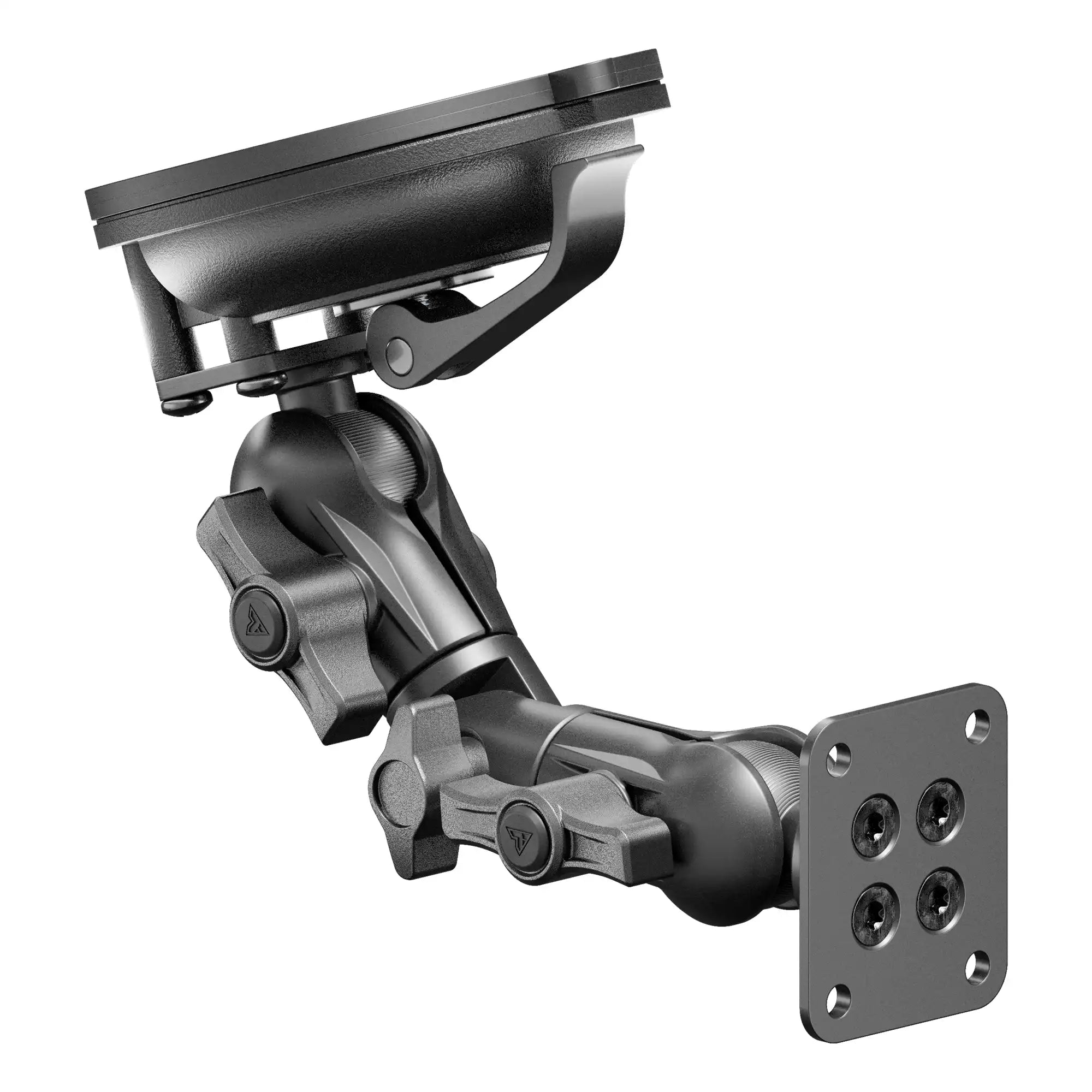

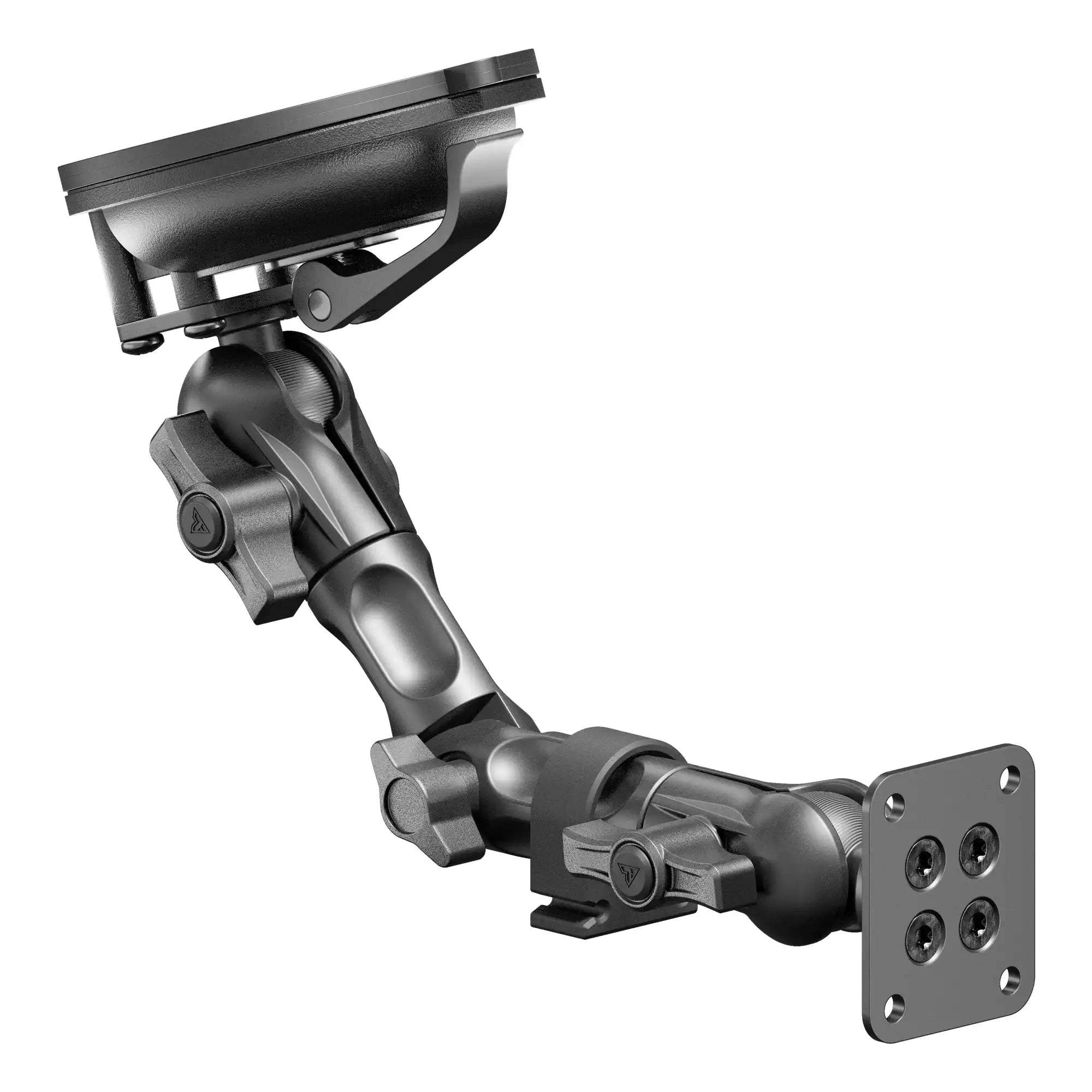

HEAVY-DUTY WINDSHIELD SUCTION CUP MOUNT WITH ALL METAL UNIVERSAL AMPS PLATE
BUILT FOR FLEETS
Engineered for the toughest environments, our heavy duty suction cup mount is built to perform in high vibration, high impact industries such as Law Enforcement, Emergency Medical Services, Waste Management, Agriculture, Powersports (SXS, UTV, ATV), and more.
ALL METAL UNIVERSAL AMPS PLATE
Industry-standard hole pattern of 30mm x 38mm (1.181" x 1.496"). Mounting holes accommodate M4, M5, 10-24, 10-32, #8 plastic screws, and other self-threading screws with a diameter of up to 5.2mm. Built from CNC machined 6061-T6 aluminum and is compatible with 20mm ball and socket systems. The base-to-ball center measurement is 1.14 inches.
HEAVY DUTY SUCTION CUP MOUNT
Features an ABS plastic body with an aluminum 26mm ball and a locking aluminum lever for suction adjustability. The 3.5" suction cup pad is replaceable if it wears out and works best on clean, smooth surfaces like your windshield.
Usage Recommendation: 26 Series only — not compatible with 1" / B-size / 25.4 mm systems. Great for ELD/telematics, dispatch, navigation, DVIR/photos, work orders.
