TR16-FL-MG1 | Slim Track Dash Bracket for Jeep JL. JT, Wrangler 4XE - Will not work with 2024+


⚠️ Not MagSafe Compatible. Requires metal plate to be adhered to phone or case. ⚠️

Jeep JL Dashboard Mount with Magnetic Phone Holder

Why Choose Tackform? Here are 3 Reasons more solid than our Mounts:

Superior Weight Support: While many Jeep dash brackets fit inside the tray, ours is distinctively mounted on top. Paired with a protective rubber gasket between the metal bracket and the dashboard, this design bolsters more weight and significantly reduces screen vibration.

Perfect Fit & Easy Installation: Tailored to seamlessly merge with your Jeep's dashboard, our bracket mounts directly into your existing tray slot. Installation is a breeze with only two screws, eliminating the over-reliance on "hard-to-remove 3M tape". While a touch of 3M tape can sometimes enhance the mounting experience, we've observed other brands overusing it, making removal troublesome.

Optimized Device Accessibility: Our design brings the devices closer to both the driver and the passenger. This positioning lets you use arms as short as 2 inches, ensuring your phone is within easy reach. Moreover, it preserves the sleek look of your rig.

Tackform prides itself in having a huge selection of parts to customize your setup exactly the way you want it.  However, we do kit together the most popular configurations the make for a smoother shopping experience.

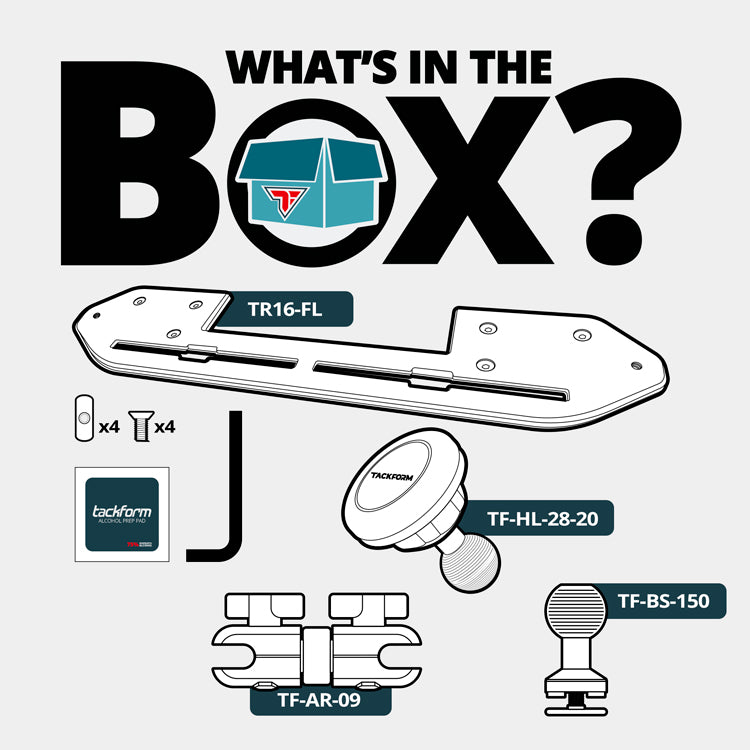

Below are the component the make this kit.

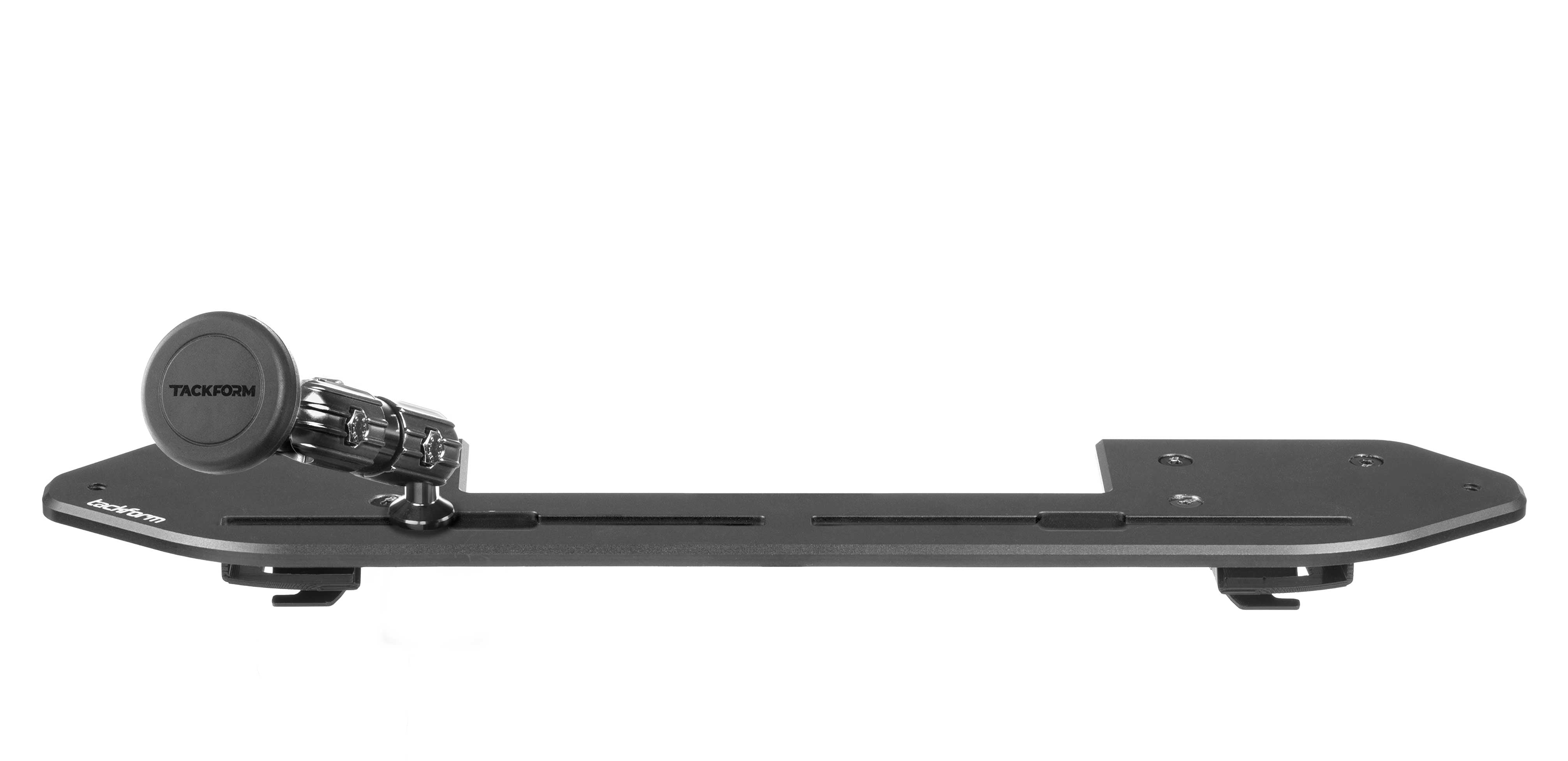

1. The Multi Mount Bracket

TR16-FL - Full Length Jeep Dash Bracket

CNC Machined Aluminum top plate with integrated Slim Track. This track is .3" wide and designed to accommodate Tackform's Slim Track Mounting Balls.

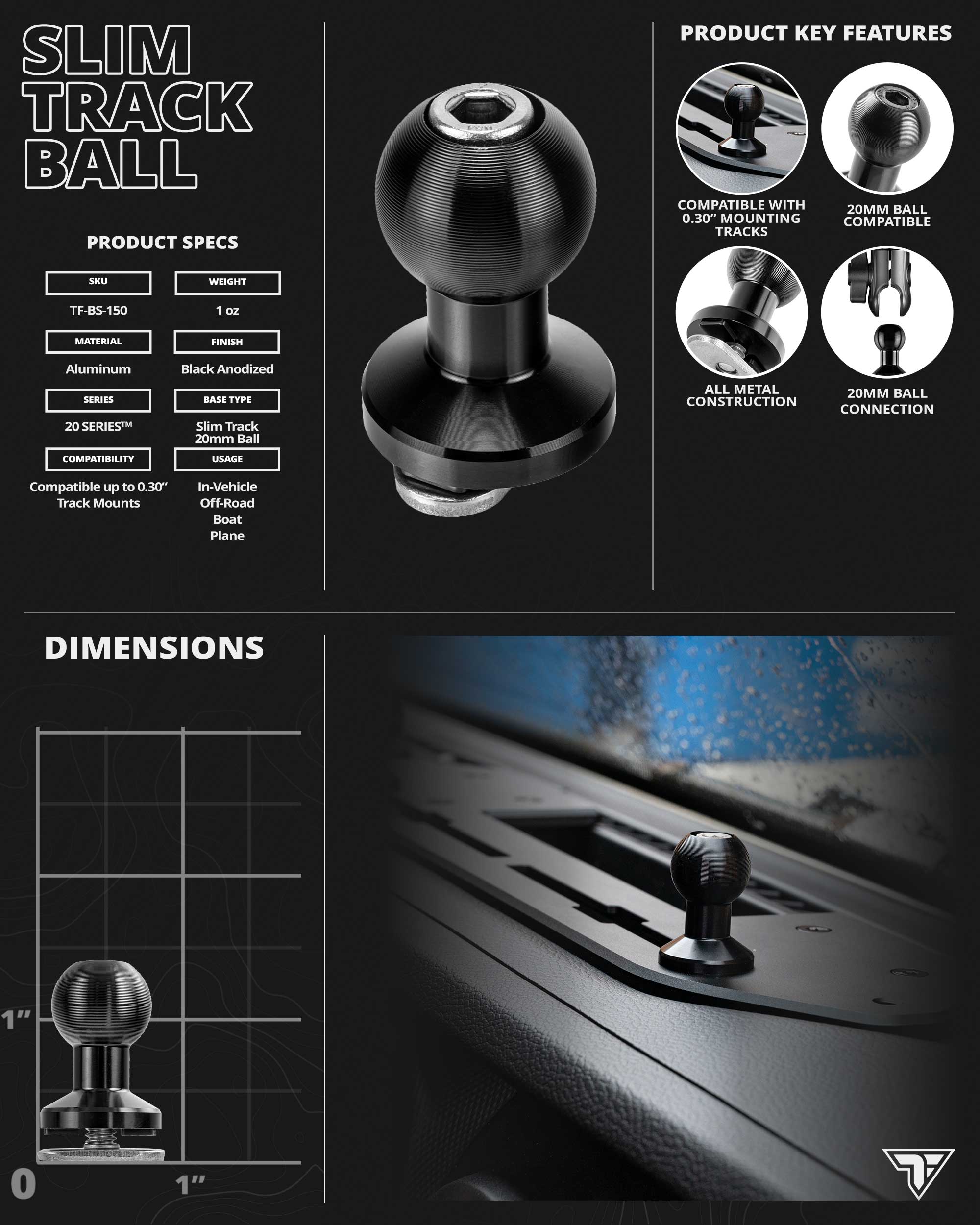

2. The Mounting Ball Base -

TF-BS-150 - 20mm Slim Track Mounting Ball

Crafted from CNC machined aluminum, this ball pairs perfectly with our mounting bracket, allowing precise device positioning. It offers a fast and hassle-free way to add, remove, or move your devices. This is in stark contrast to the tedious nut-and-bolt installation of traditional "grid style" dash brackets.

3. The Arm -

AR20-2070 - 3.5” Aluminum Double Socket Arm

Belonging to the 20 Series, this 3.5-inch arm is tailored for metal 20mm balls. Its sleek design is notable, and it boasts independent sockets on both ends for flexibility. This design grants a wide range of movement, helping you set your device at the perfect angle. The arm's metal ball and socket mechanism can be locked securely with a simple half-turn of a knob. The space between the two ball centers is about 2.75”. Additionally, it comes with optional anti-theft knobs for enhanced security.

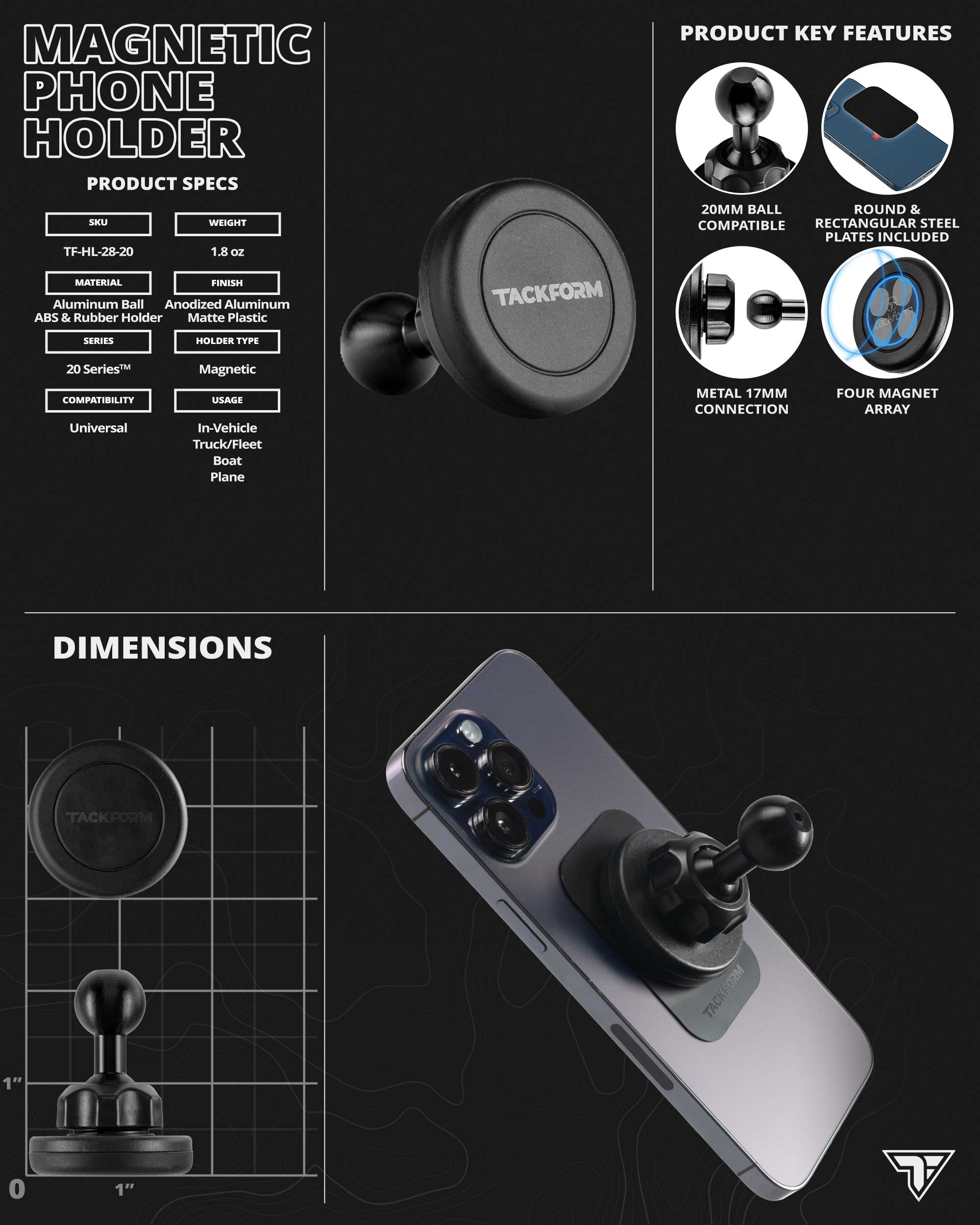

4. The Holder

TF-HL-28-20 - Magnetic Phone Holder (NOT MAGSAFE COMPATIBLE)

This magnetic interface is the epitome of ease of use while creating a hold strong enough to handle whatever the roads can throw at you. It’s recommended that you adhere the included metal plate to the back of your device, like shown in the picture, to ensure you're getting the full strength of the rare earth magnets housed in the mounting cradle. The magnetic head has a 17mm socket on the back of it, then it’s paired with a 17-20mm ball that will allow it to seamlessly interface with any of our 20 Series arms.

Compatible With:

Jeep Wrangler JL: 2018 - Present

Jeep Gladiator JT: 2018 - Present

Jeep Wrangler 4XE: 2018 - Present
